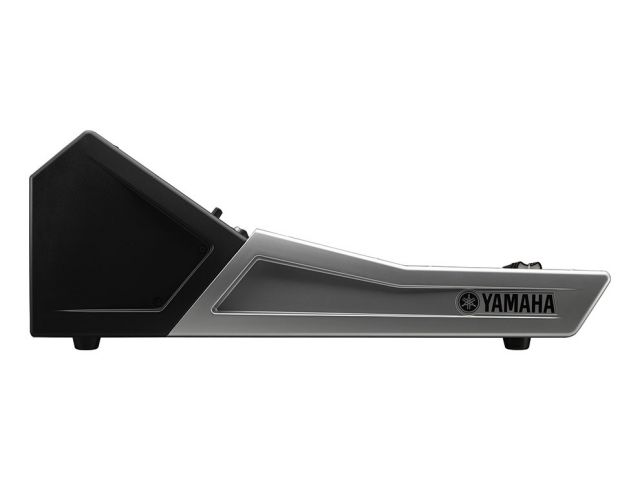

YAMAHA TF5 ดิจิตอลมิกเซอร์ 48 input mixing 40 channels

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

YAMAHA TF5 ดิจิตอลมิกเซอร์ 48 input mixing channels (40 mono + 2 stereo + 2 return)

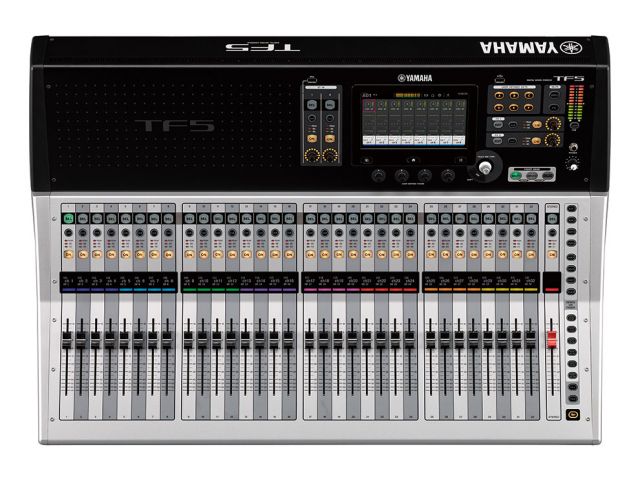

33 motor faders (32 channels + 1 master)

48 input mixing channels (40 mono + 2 stereo + 2 return)

20 Aux (8 mono + 6 stereo) + Stereo + Sub buses

8 DCA groups with Roll-out

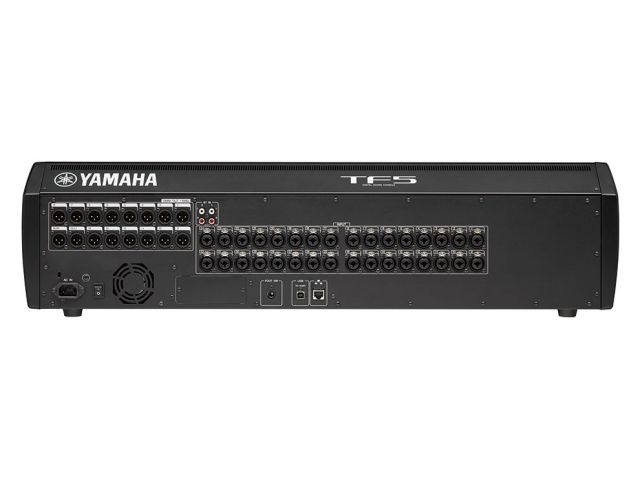

32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

16 analog XLR outputs

34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

1 expansion slot for NY64-D audio interface card

Specs

Outline
Fader Configuration 32 + 1 (Master)
Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs 16 (XLR)
Expansion slots 1
On-board processors DSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device
General specifications

Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 120 W
Dimensions W 866 mm (34.1in)
H 225 mm (8.9in)
D 599 mm (23.6in)
Net weight 20.0 kg (44.1lb)
Accessories Quick Guide, Power Cord, CUBASE AI download information
Options Expansion Card, Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
Analog input characteristics

Input Terminals GAIN Load
Impedance For Use With
Nominal Input Level Connector balanced /
Unbalanced
Sensitivity*1 Nominal Max. before clip
INPUT1-32 +66dB 7.5KΩ 50-600Ω Micsor 600Ω Lines -82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2or TRS phone *3) Balanced-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 — 10kΩ 600Ω Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
Analog output characteristics

Output Terminals Source
Impedance For Use With
Nominal GAIN SW Output Level Connector balanced /
Unbalanced
Nominal Max. before clip
OMNI OUT 1-16 75Ω 600Ω Lines “+24dBu” position (default)+4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *3 100Ω 40Ω Phones — 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced
*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.
Digital input/output specifications

Terminals Format Data length Audio Connector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB — Playback: MP3 or WAV file data / Record: WAV file data USB (A type)
Control I/O specifications

Terminals Format Level Connector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW — —
